BOSCH NDC-255-P VIDEOCAMERA IP POE DOME CAMERA INDOOR TELECAMERA LAN RJ-45

Bosch NDC-255-P Overview

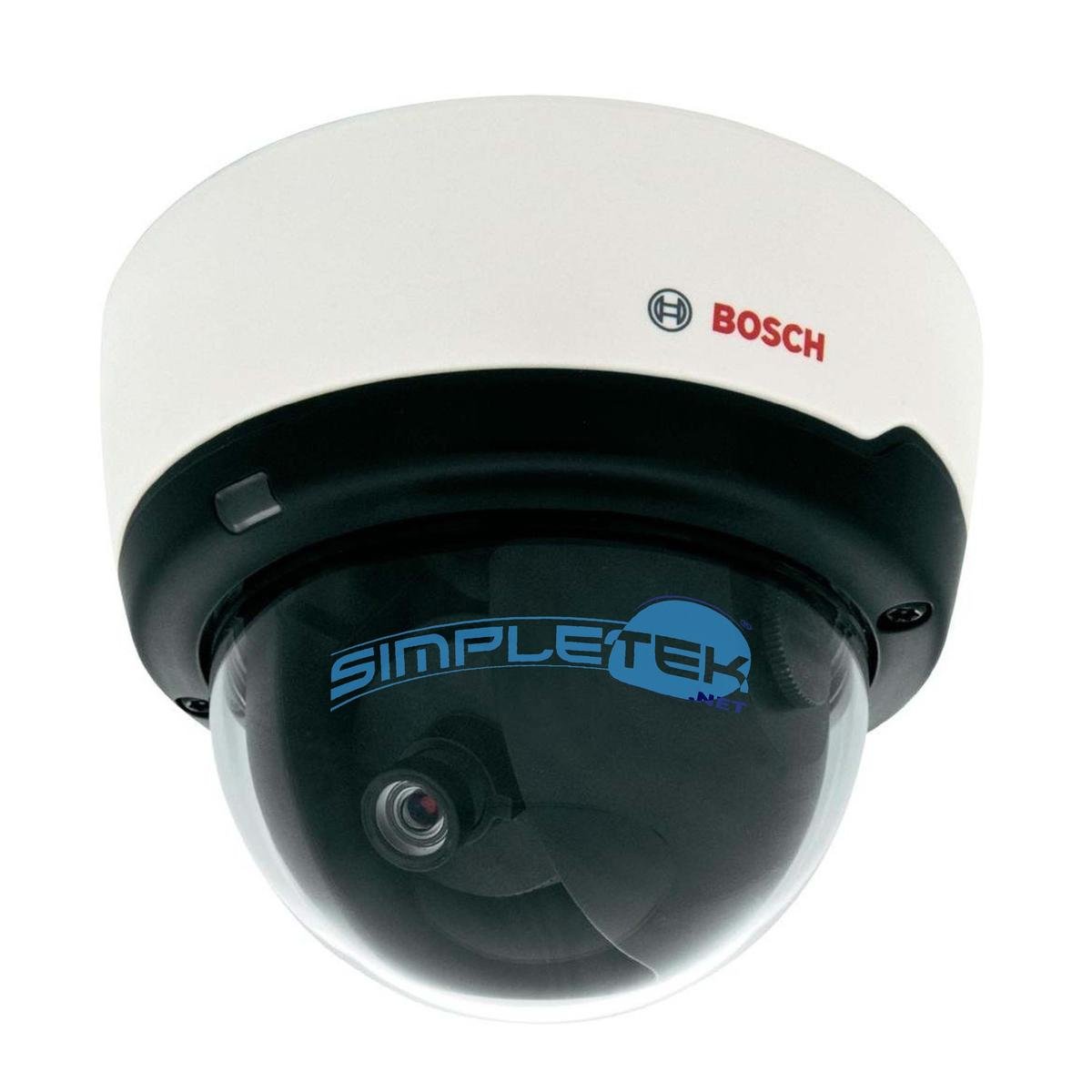

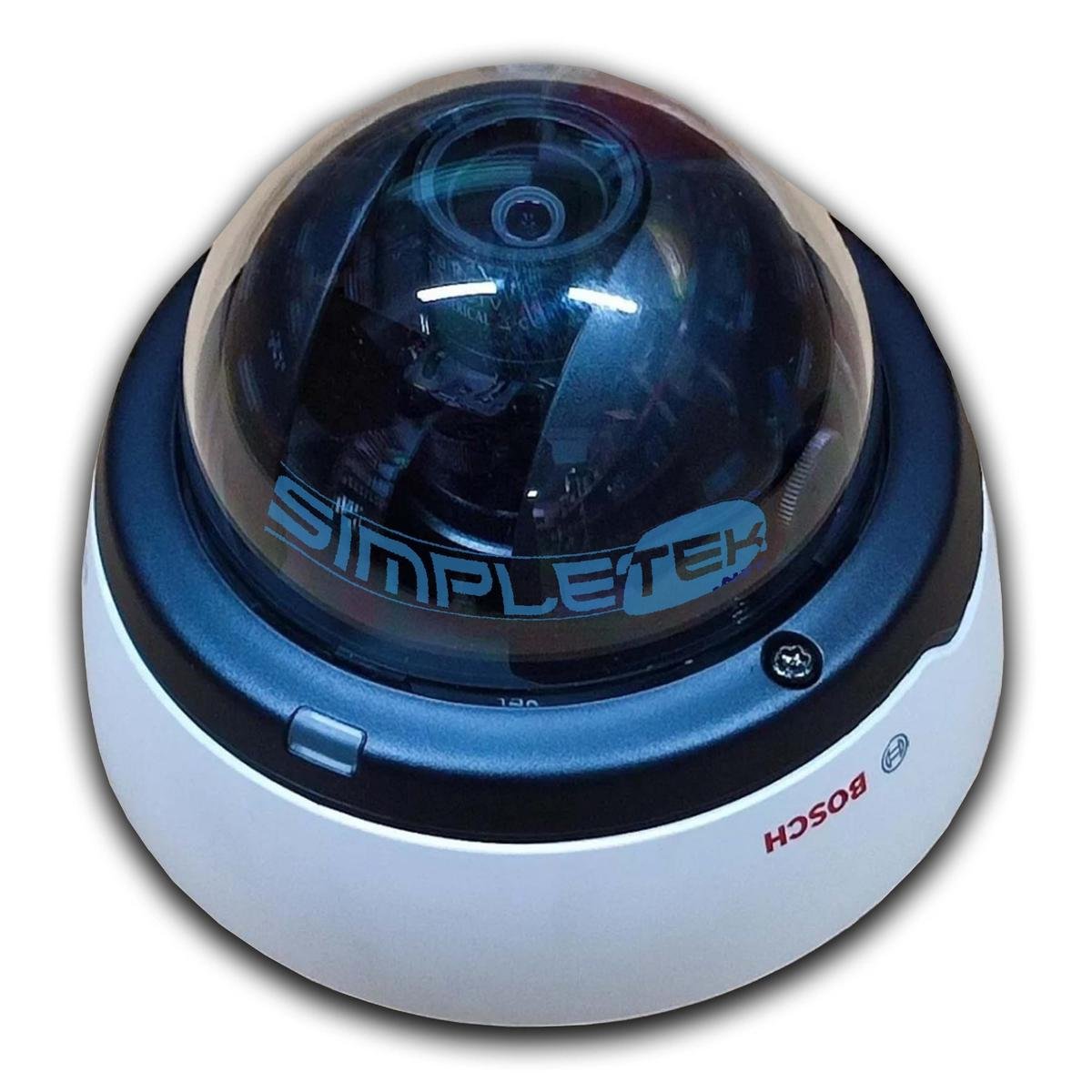

The Bosch NDC-255-P IP Dome Camera (Varifocal 2.8-10 mm Lens, F1.2 to close), with a 1/4″ CMOS sensor and a Varifocal 2.8-10mm lens, provides high-quality imagery at up to 640 x 480 pixels at a maximum of 30 fps. With the H.264 compression technology, the IP camera maintains quality video images while maximizing storage space and network resources. The progressive scan technology allows the camera to produce sharp images even in demanding scenes with high motion content.

Tri-streaming video feature allows the camera to generate 2 independent H.264 streams and 1 M-JPEG stream at the same time. With the ONVIF 1.0 (Open Network Video Interface Forum) standard, the camera is compatible with other surveillance products.

Support for a removable microSD/SDHC card reduces the necessity for a hard disk or DVR, thereby saving the network bandwidth. To record long duration videos, the camera can be used in unison with an iSCSI server connected over the network. The featured 16-channel PC surveillance software provides easy setup and configuration. The built-in wizard makes use of an auto detection device to configure multiple cameras simultaneously.

Supporting two-way audio, the NDC-255-P IP Dome Camera enables the remote users to hear and send alarm messages to visitors or intruders with the help of an external loudspeaker (not included). In addition, you can also use audio detection to generate an alarm. The tamper and motion detection feature uses a built-in algorithm to trigger alarm by identifying changes in the video signal. PoE (Power over Ethernet) supplies power to the camera from the network itself without any extra wiring for auxiliary power outlets

1/4″ CMOS sensor

Varifocal 2.8-10 mm lens

H.264 compression technology

Progressive scan technology shoots sharp pictures even in demanding scenes with high motion content

Tri-stream video feature allows the camera to generate 2 independent H.264 streams and 1 M-JPEG stream simultaneously

Enables live streaming and recording of H.264 videos, while relaying M-JPEG images to a different device simultaneously

ONVIF 1.0 (Open Network Video Interface Forum) enables exchange and use of live video, audio, metadata, and control information between network video products

Support for a removable microSD/SDHC card reduces the necessity for a hard disk or DVR, thereby saving the network bandwidth

Can be used in unison with an iSCSI server connected over the network

16-channel PC surveillance software provides easy setup and configuration

Built-in wizard makes use of an auto detection device to configure multiple cameras simultaneously

Two-way audio enables the remote user to hear and send alarm messages to visitors or intruders with the help of an external loudspeaker (not included)

Tamper and motion detection uses a built-in algorithm to trigger alarm by identifying changes in the video signal

PoE (Power Over Ethernet) supplies power to the camera from the network itself without any extra wiring for auxiliary power outletscan be used in unison with an iSCSI server connected over the network. The featured 16-channel PC surveillance software provides easy setup and configuration. The built-in wizard makes use of an auto detection device to configure multiple cameras simultaneously.

IP Camera 200 Series Technical Data | en 95

Bosch Security Systems Installation and Operation Manual AR18-09-B003 | v1.1 | 2010.05

10 Technical Data

10.1 Specifications

Input voltage +12 VDC or Power-over-Ethernet

Power consumption 4.08 W (max)

Sensor type ¼-inch CMOS

Sensor pixels 640 x 480

Sensitivity 1.0 lux

Video resolution VGA, QVGA

Video compression H.264 MP (Main Profile) H.264 BP+ (Baseline

Profile Plus) M-JPEG

Frame rate 30/25 fps: all resolutions, triple stream

Lens type Varifocal 2.8 to 10 mm, F1.2 to close (NDC-255-P)

Fixed 4 mm, F1.5 (NDC-225-P)

Alarm Input Short or 5 VDC activation

Relay Out Switch rating: Max. 1 A 24 VAC/VDC

Audio Input Built-in microphone, Line in jack connector

Audio Output Line out jack connector

Audio

communication

Two-way, full duplex

Audio compression G.711

Memory card slot Supports up to 32 GB microSD/SDHC card

Recording Continuous recording, ring recording. alarm/

events/schedule recording

96 en | Technical Data IP Camera 200 Series

AR18-09-B003 | v1.1 | 2010.05 Installation and Operation Manual Bosch Security Systems

10.1.1 Accessories

– Archive Player Export License

Contact a Bosch representative in your area for the latest

available accessories or visit our website at

Unit Configuration Via web browser or PC surveillance software

Protocols HTTP, HTTPs, SSL, TCP, UDP, ICMP, RTSP, RTP,

RTCP, IGMPv2/v3, SMTP, FTP, DHCP client, ARP,

DNS, DDNS, NTP, SNMP, UPnP

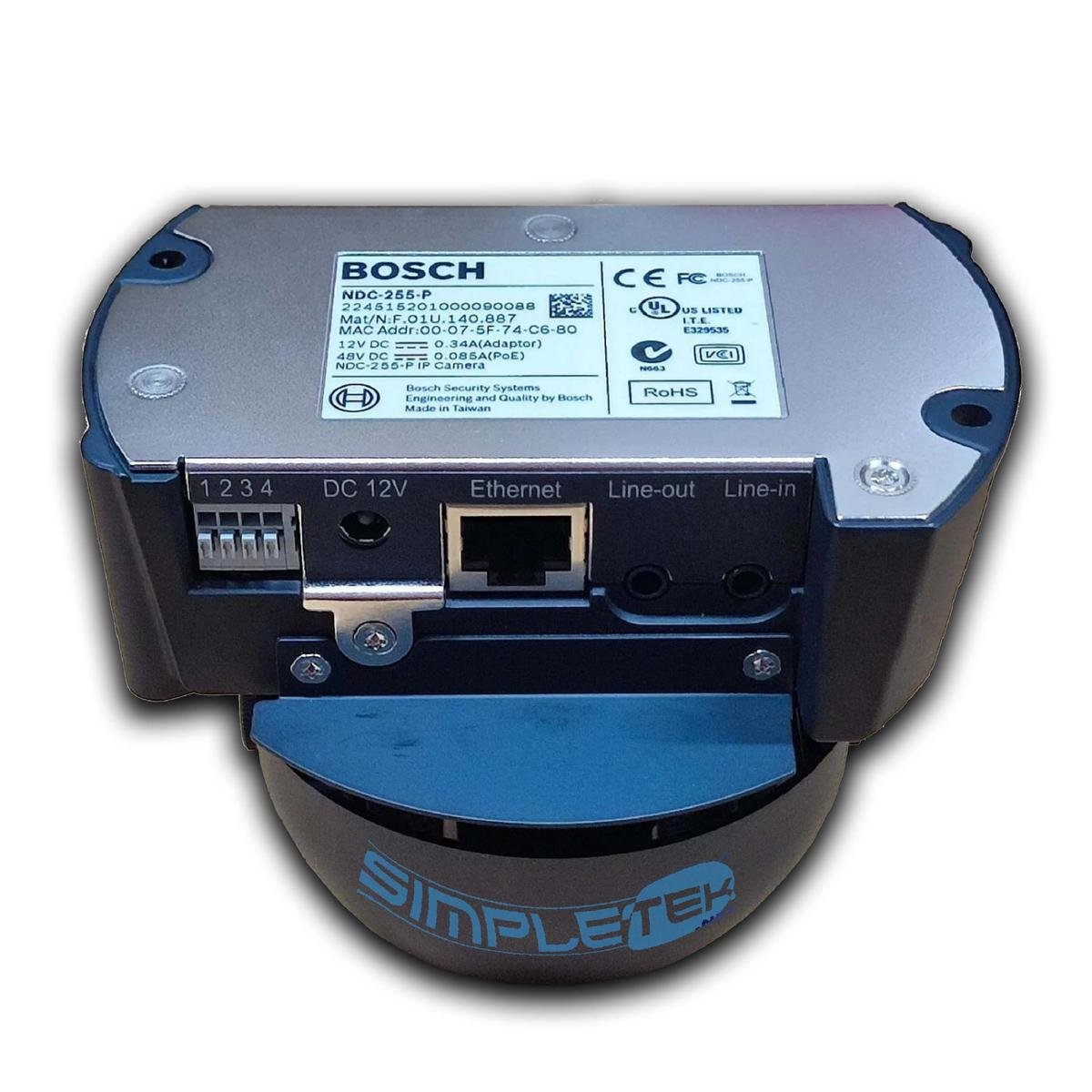

Ethernet 10/100 Base-T, auto-sensing, half/full duplex,

RJ45

PoE IEEE 802.3af compliant

Dimensions Diameter: 135 mm (5.32 in)

Height: 101.5 mm (4 in)

Weight NDC-255-P: 548 g (1.21 lb) approx.

NDC-225-P: 523 g (1.16 lb) approx.

Operating

Temperature

(Camera)

-10 ºC to +50 ºC (14 ºF to +122 ºF)

Operating

Temperature

(Power supply)

0 ºC to +40 ºC (+32 ºF to +104 ºF)

Storage

Temperature

-20 ºC to +70 ºC (-4 ºF to +158 ºF)

Humidity 10% to 80% relative humidity (non-condensing)
